| outdoor unit |
| price |
name |

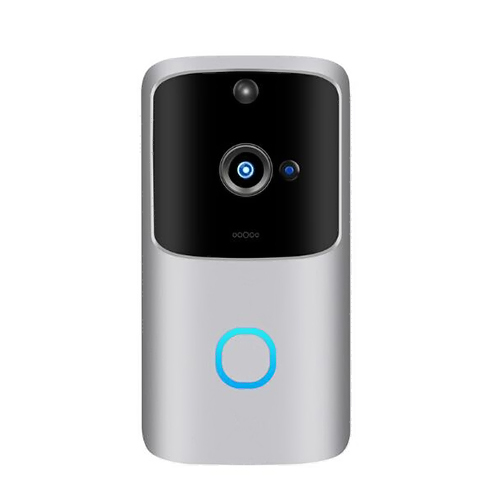

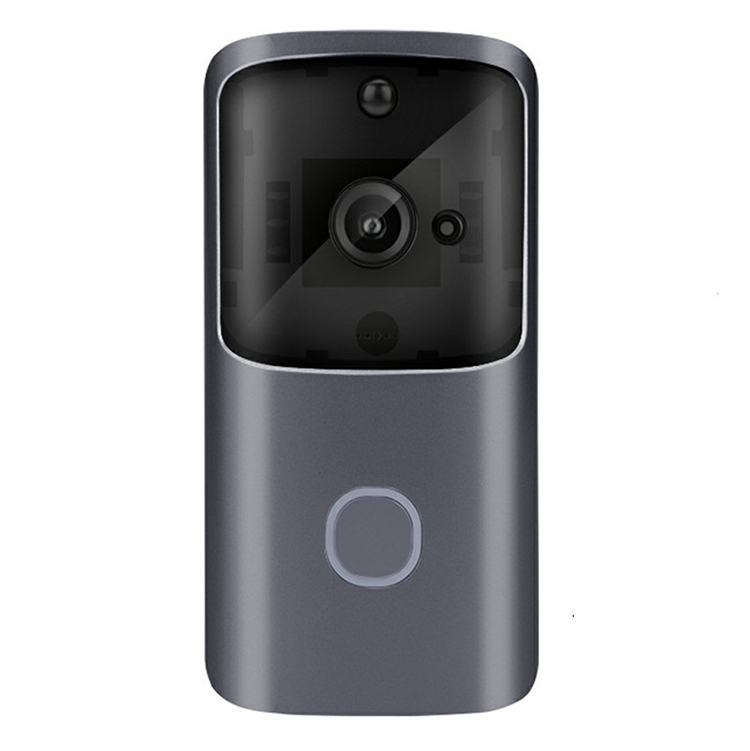

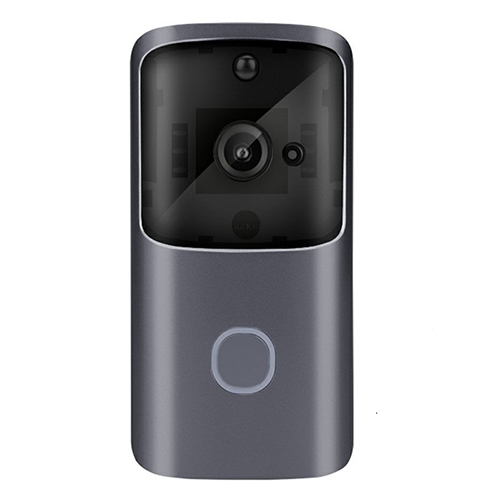

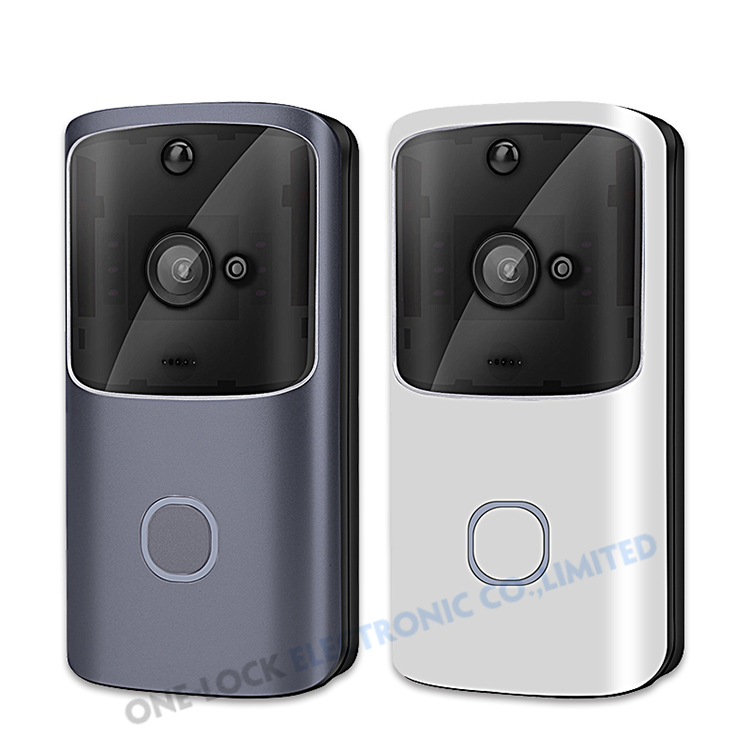

Wireless video to the doorbell |
| |
model No memory card or battery No indoor unit |
| describe |
features |
wireless connection，Ultra-low power consumption，Remote active awakening，Quick start |
| use |
Guests will be able to make video voice calls and take short videos. The owner will not need to open the door to know the information |
| Wake up the way |
The doorbell button awakens,PIR body detection wake up,Mobile phone call |
| Alarm push |
Push for 1 second |
| operating system |
Number of users online |
Multiple users are online simultaneously |
| Dynamic DNS |
Bring your own dynamic domain name |
| processor |
A powerful, high-performance, programmable media HiSilicon processor with built-in ARM926 @max. 440MHz and high-speed video coprocessor |
| collect |
CCD |
1/4 inch 720p scan CMOS sensor |
| Sensor performance |
Support automatic white balance, automatic gain control, automatic backlighting compensation |
| SNR |
≥39dB |
| Lens/visual Angle |
2.6mm @F2.0/140° |
| LED |
Double filter automatic switching, six 850 - nm Φ 28 mil high power infrared lamp, night vision 10 meters |
| IR control |
IR opens night vision，Automatic detection of infrared and ICR；IR shuts the night vision function off the infrared and the ICR is fixed in daily viewing mode |
| video |
Compression standard |
H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline |
| Video coding |
More stream：720P/24fps+VGA/30fps+QVGA/30fps+720P @1fsJPEG snap |
| resolution |
1280*720 1920*1080P |
| audio |
input |
1 channel built-in - 38dB microphone |
| output |
Built-in speaker (8 Ω 1 w) |
| interphone |
Two - way voice - speak, bring back the echo cancellation |
| Compression standard/ code rate |
ADPCM/32kbps |
| network |
Network protocol |
TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP，P2P |
| wireless network |
802.11b/g/n |
| Wireless network security |
WPS Security encryption |
| wireless connection |
One-button WIFI configuration |
| video |
Video mode |
Mobile detection video, doorbell button trigger video, manual video |
| storage |
The TF card stores the maximum support for 32gb |
| other |
power |
Battery power supply three section 18650 core international general |
| Power consumption |
Standby current 120 uA working current 170MA |
| work environment |
Working temperature: - 10 ~ 50 ℃, humidity is < 95% |
| installation |
Door wall mounting |
| material |
ABS |

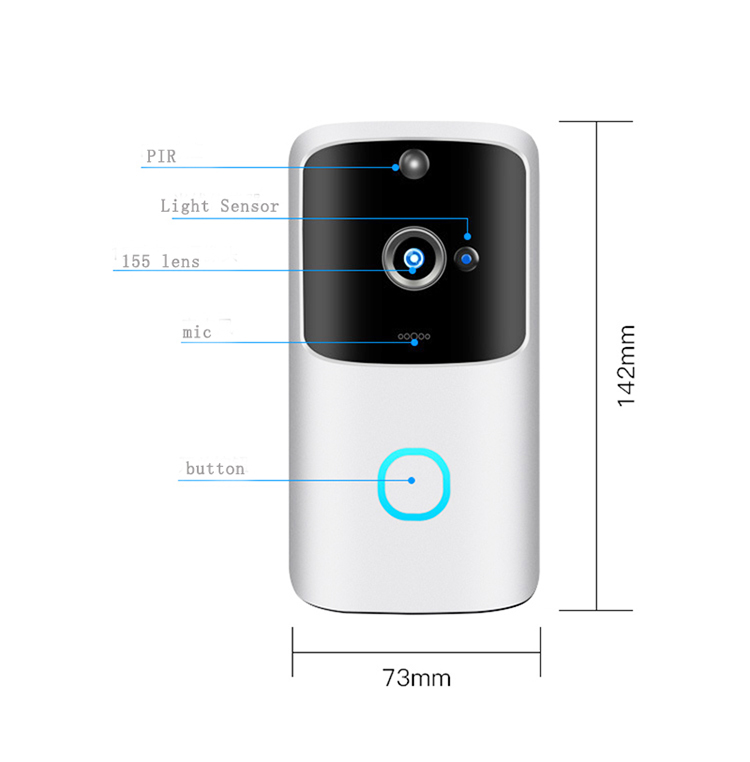

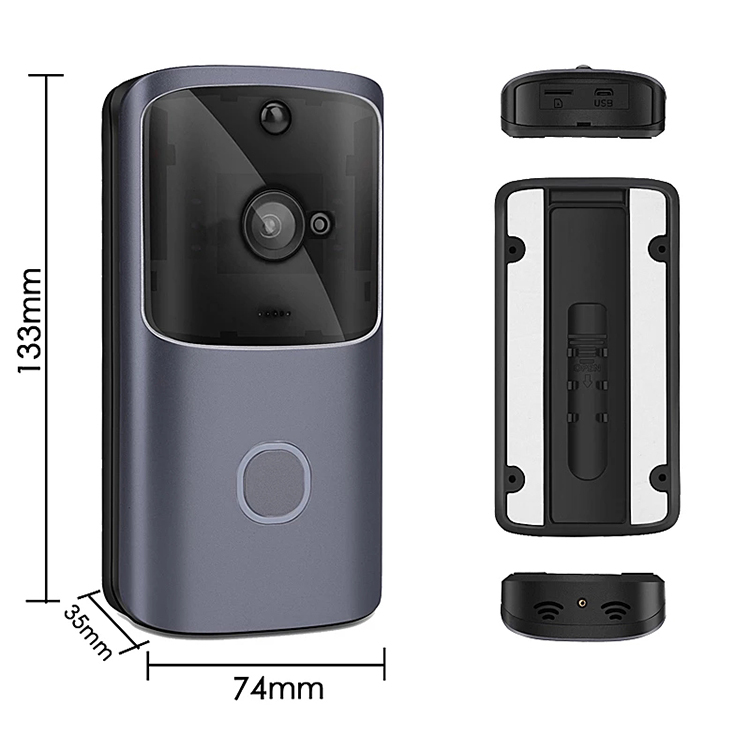

| Product size |
13.3*7.4*3.5cm |
| product weight |
190g／No battery |
