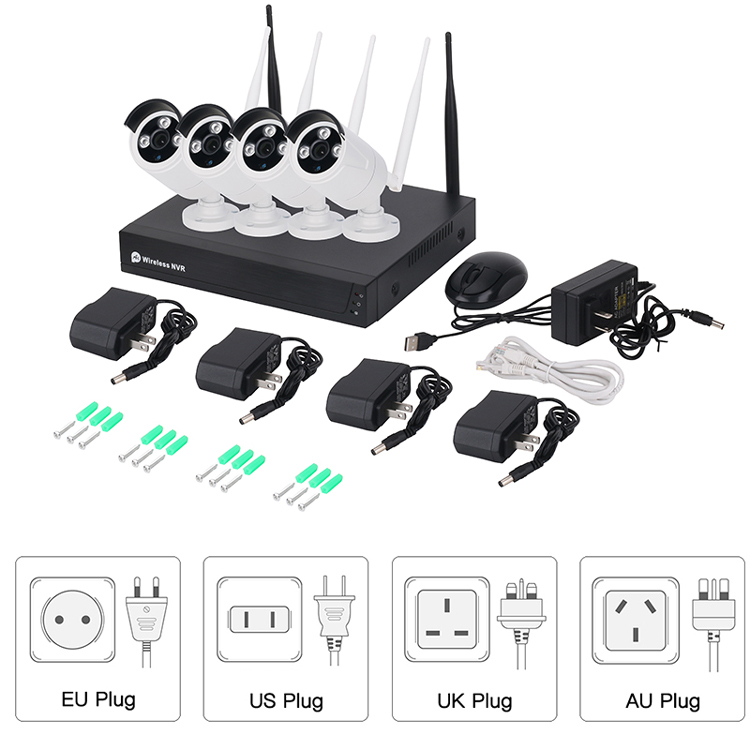

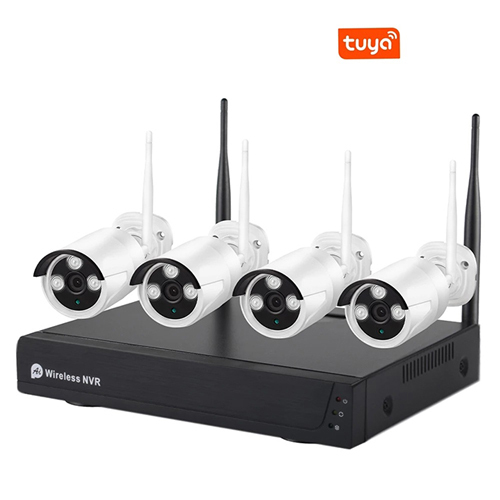

TK7204W TUYA wifi 4CH wireless nvr camera kit

Item No.: TK7204W
TK7204W is the 4ch 2mp 1080P Tuya wifi App Audio Video Surveillance Wireless NVR Kit H.265 wifi camera kit.
Description
TK7204W is the 4ch 2mp 1080P Tuya wifi App Audio Video Surveillance Wireless NVR Kit H.265 wifi camera kit.

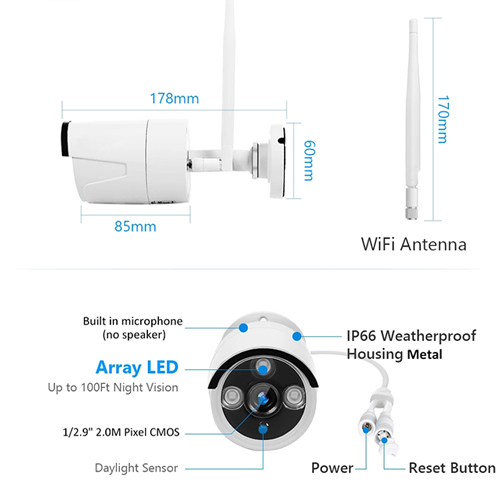

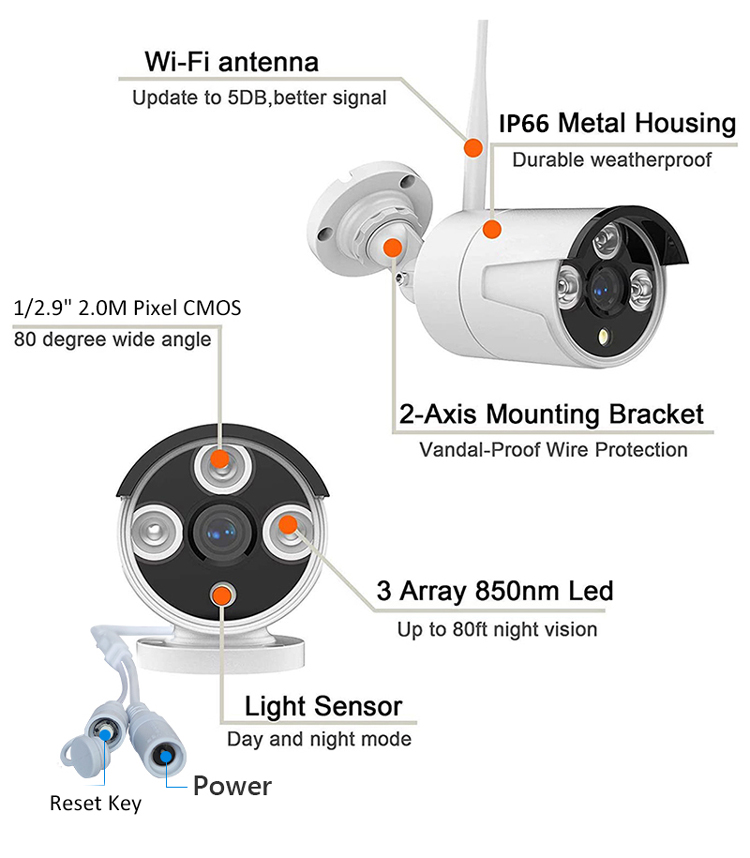

Image Sensor 1/2.9' 2.0M Pixel Progressive Scan CMOS
Minimum illumination 0.01Lux@F1.2(Color mode);0.001 Lux@F1.2(B&W mode);≤0Lux(Infrared light is on)
Ir distance 20m
lens 3.6mm
View angle Horizon 90°,vertical 48°
Audio optional
Video compression H265,H264
Pixel 1920×1080@20fps
Video resolution Main stream(1920×1080、1280×960、1280×720、720×576、640×480)
Secondary stream(640×480、352×288、320×240、176×144)
Image flip Flip horizontally, flip vertically
AI smart Humanoid detection
Motion detection Support
Alarm linkage Push alarm information (motion detection)
Privacy zone Support
Network protocol TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,802.1X,P2P
Network Interface non
Wireless frequency 2.4GHz
Wireless standard IEEE802++

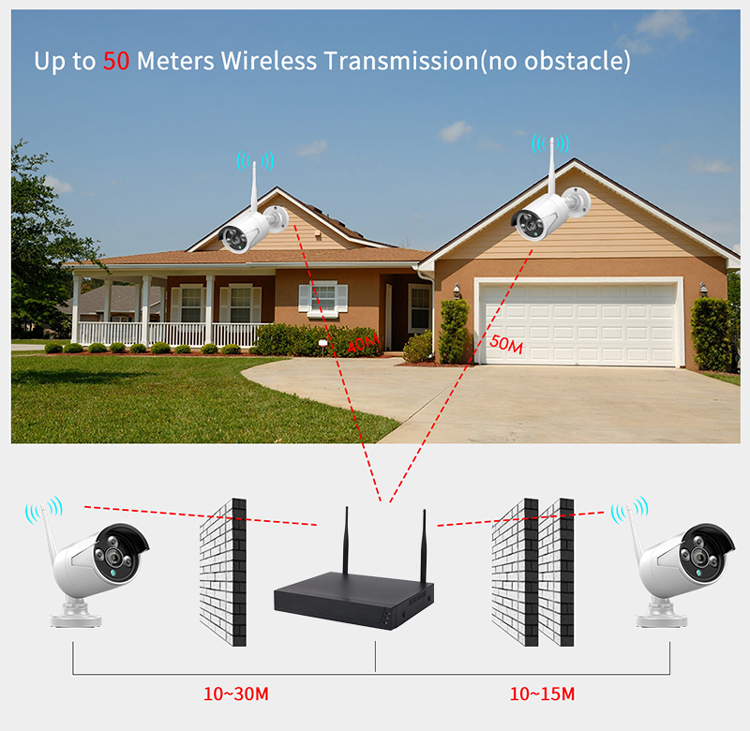

Wireless transmission distance The transmission distance is more than 80 meters in the open and barrier-free, and more than 30 meters through the wall. The actual transmission distance depends on the environment
Power supply 12VDC@1A,
Power consumption Max power consumption: 6.5W; basic power consumption: 2W
Working temperature and humidity -30°C ~60°C,0%-90% RH(No condensation)

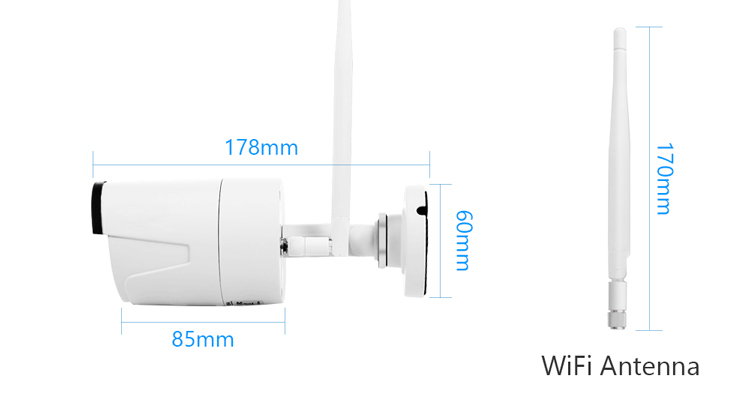

Size 65*170*60(mm)
weight 350g

NVR Specification
Model WNVR-7204-K
4ch 2mp wireless NVR
System Main processor Industrial-grade embedded microcontroller
operating system Embedded LINUX operating system
Video parameters Image decoding standard H.264 High Profile Lever 4.2/H.265 Main Profile Lever
Video output capability 720P60,XGA,1080P60
Video access capability 4*1080P/4*960P/4*720P
Audio parameters Decoding standard G.711
Voice intercom optional

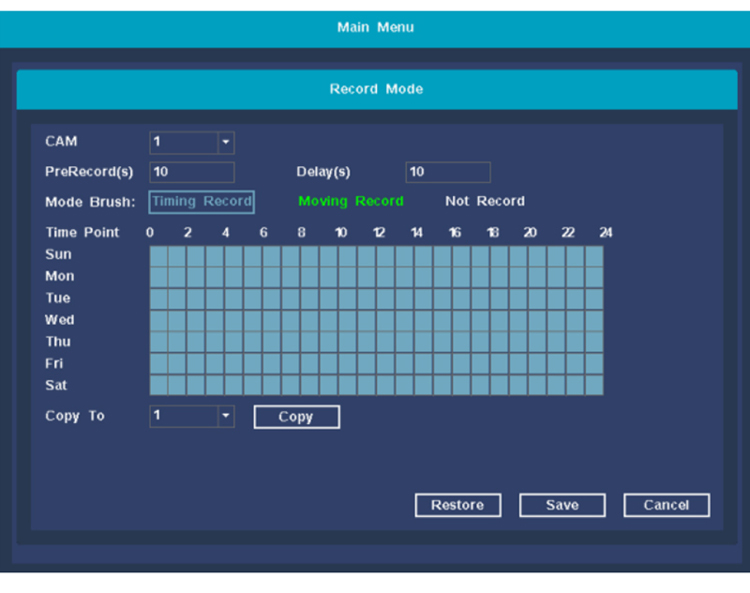

Recording and playback Video mode Manual recording, motion detection recording, timing recording, alarm recording

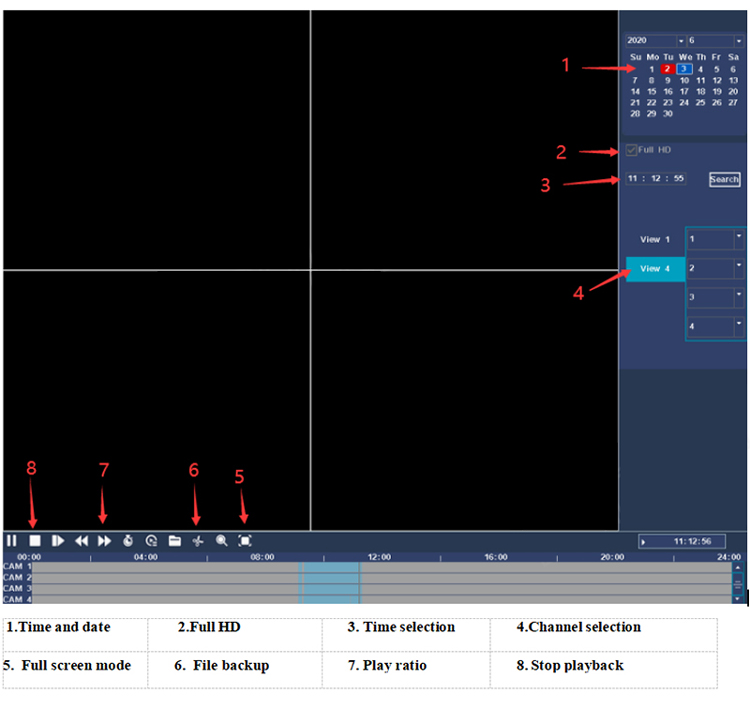

Video playback Single channel 1080P synchronous playback, playback speed is adjustable 1/4, 1/2, 2X, 4X
Storage and backup Each way takes up space Video: 720P/960P 16G/day, the actual occupied space varies according to the size of the stream
Backup method Support hard disk, U disk storage and backup
Network Network protocol TCP/IP,HTTP,NTP,DHCP,UDP,ARP,DDNS,DNS,P2P

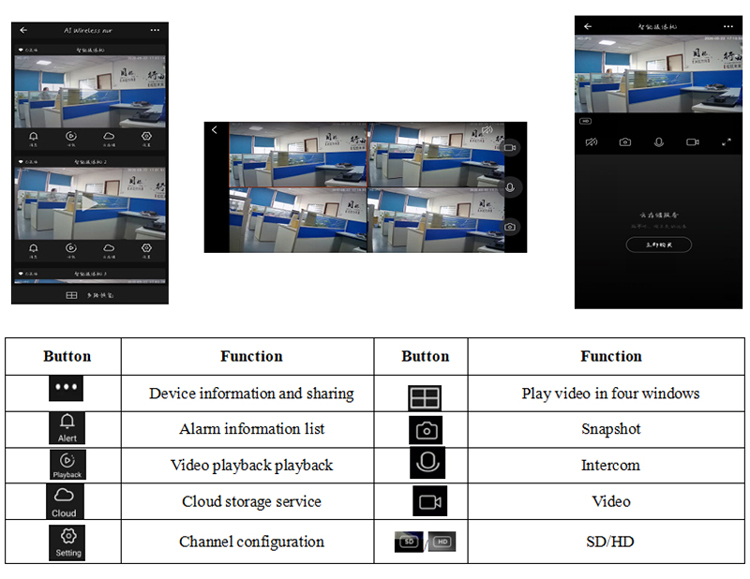

Phone Support iPhone,Android phone monitor
Browser Support IE and other browsers

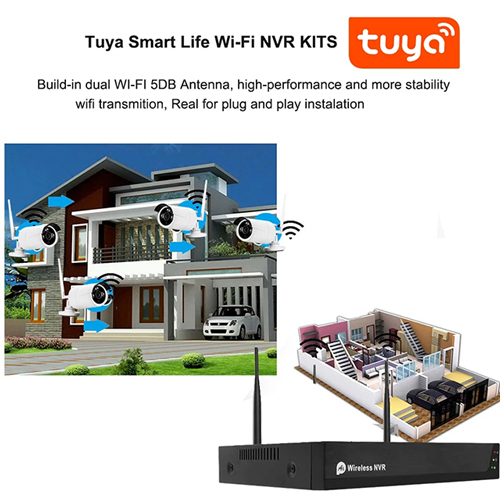

Wireless Wireless module Built-in professional enhanced wireless receiving module
antenna 2pcs 5dB antennas
Transmission distance The barrier-free transmission distance is 120 meters, through the wall 30 meters, the actual transmission distance depends on the environment

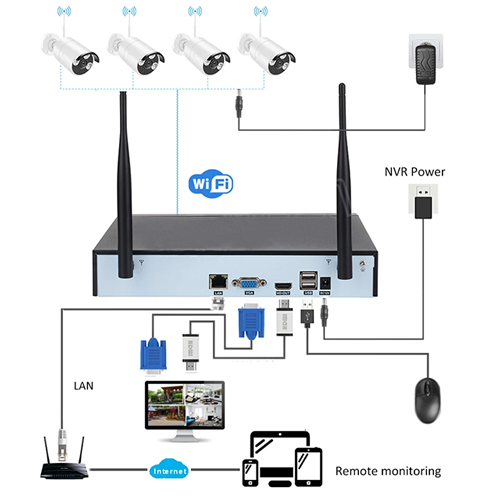

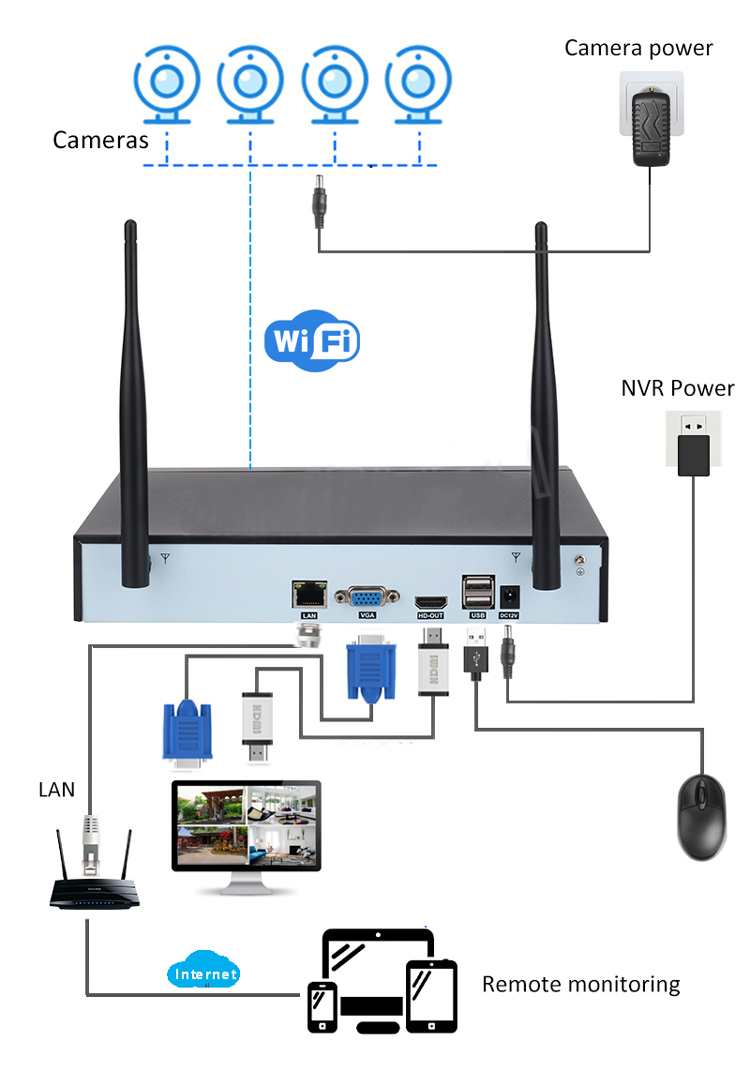

interface Video input 4 ch 1080P network input
Video output 1 VGA output, 1 HDMI output
Audio I/O N
Alarm I/O N
Network Interface RJ45 10M/100Mbps Adaptive Ethernet interface
USB 2 USB 2.0 ports
HDD support 1 SATA hard disk (maximum support 4T)
Others Power supply DC +12V /3A
Power consumption 5W(not including the HDD
Operating temperature -10℃-+55
Working humidity 10%-90%
Standard Carton Packing Info
Model Quantity Weight Dimension(cm)
TK7204W 4pcs 12.8KG 37×34×57.5(cm)
1set  Packing Info
TK7204W 1set 3KG 31×17.5×27.5(cm)
