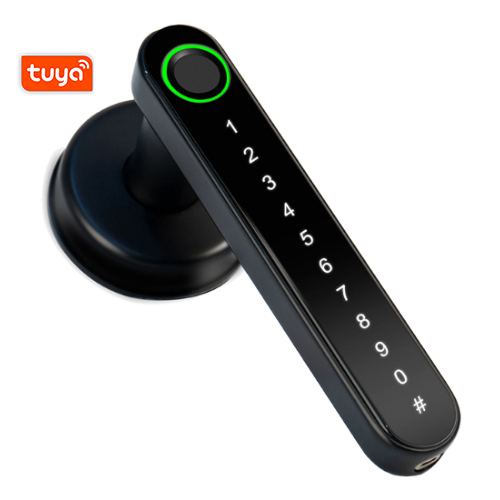

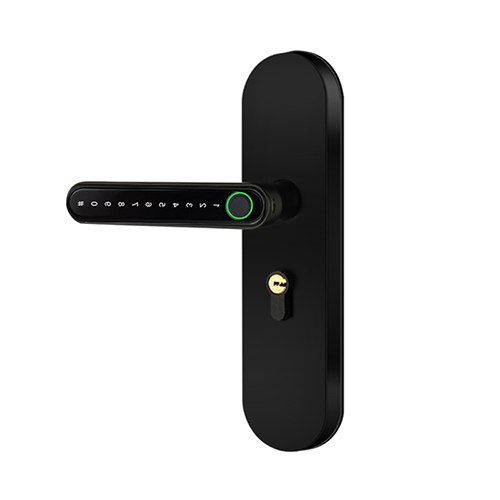

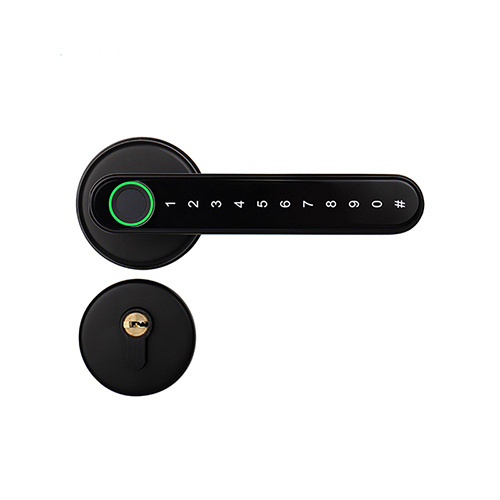

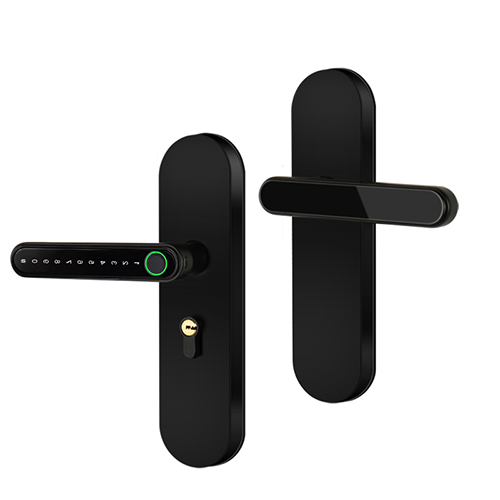

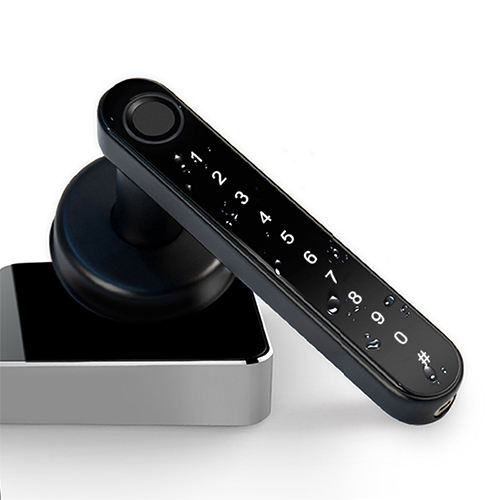

FL-S1 Blutooth Smart Fingerprint Lock with App

Item No.: FL-S1 Tuya
FL-S1 is a small WIFI Smart Fingerprint Lock with TUYA App.It use multiple ways to open doors:fingerprint.password and tuya WIFI app.FL-S1 is used on private living room mostly.
Description Packing List
The bluetooth standard
  • Bluetooth 4.1 BLE

Supported mobile phone system
  • The Android 4.3 / IOS7.0 above

power supply mode
  • 4 alkaline dry batteries

  • Low electric alarm voltage

4.8V
Voltage Range 4.5~10V
standby current
  • 65 microamps

working current
  • Less than 200 milliamperes

The lock time
≈1.5seconds
Operating Temperature Range
  • - 20 ~ 70 degrees Celsius

Button type
  • Capacitive touch button

Password number APP send password   /  unlimited
Custom password      /    150
  • Supported card types

  • MIFARE card M1

IC card number 200
The lock mode
  • App, password, fingerprint, IC card, key

  • The output voltage of the motor interface

  • Reduce the battery voltage by 0.3V

  • Type of fingerprint head

  • Semiconductor fingerprint head

Fingerprint capacity 120
  • Recognize false rate (FAR)

<0.001%
  • Rejected boomed (FRR)

<1.0%
Standard Carton Packing Info
Model Quantity Weight Dimension(cm)
FL-S1 20pcs 22KG 53×38.5×40(cm)
1set  Packing Info
FL-S1 1set 1.2KG  22×20×8(cm)
