Service
|
ODM/OEM available
|
|
|
Material
|
Body: ADC12 aluminiumAlloy,
Shackle: 303 Stainlesssteel
|
Surface Treatment Body
|
Spraying powder, Shackle:
Stainless steel ( 48 hours salt spray test)
|
|

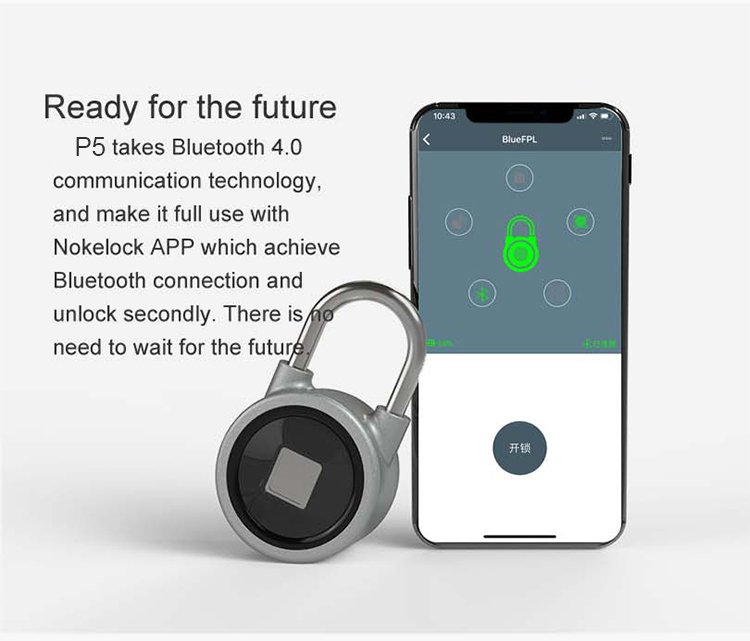

Communication
|
BT 4.0 (TI-CC2541) & Fingerprint
|
Support Device
|
IOS & Andriod 4.4
|
|
BLE |
Frequency: 2.4G
|
Rx sensitivity: -90dbm
|
|
|
Transmitting power: -8.5dbm
|
Encryption: AES
|
||
|
Battery
|
Polymer battery 3.7V 110MAH,

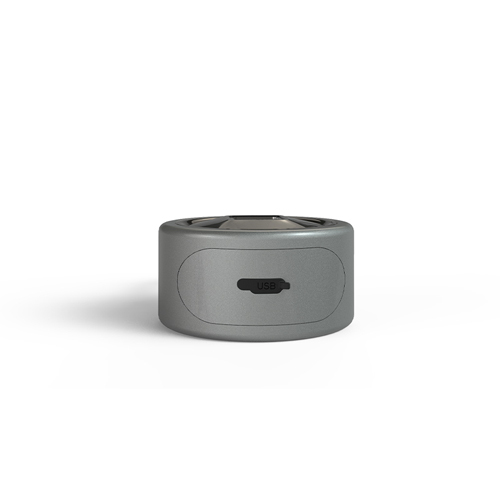

Rechargeable, 5V110mA (Android Micro USB) |
Duration
|
Standby one month, continuously unlockmore than1000 times
|
|
OS
|
Embedded system
|
Working mode
|
Short-broadcast
|
|
Unlocking
|

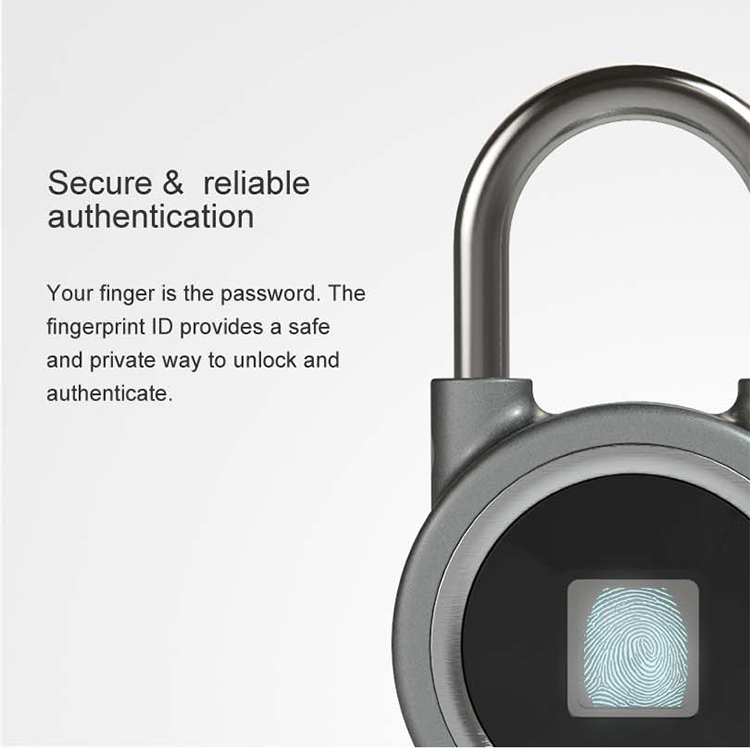

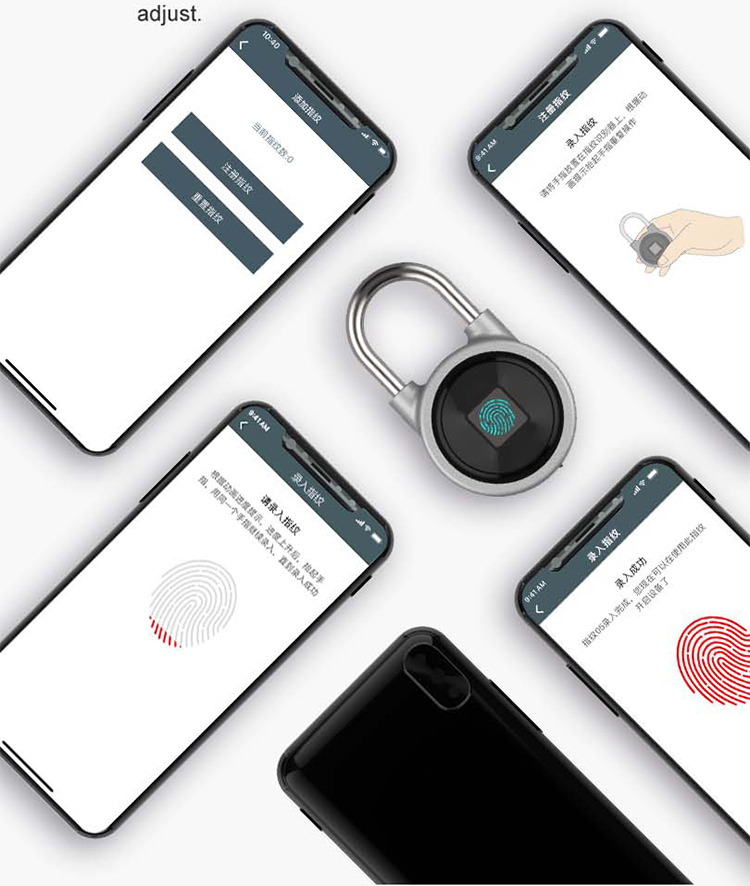

APP or fingerprint, QR to unlock
|
Voltage
|
3.7 V
|
|

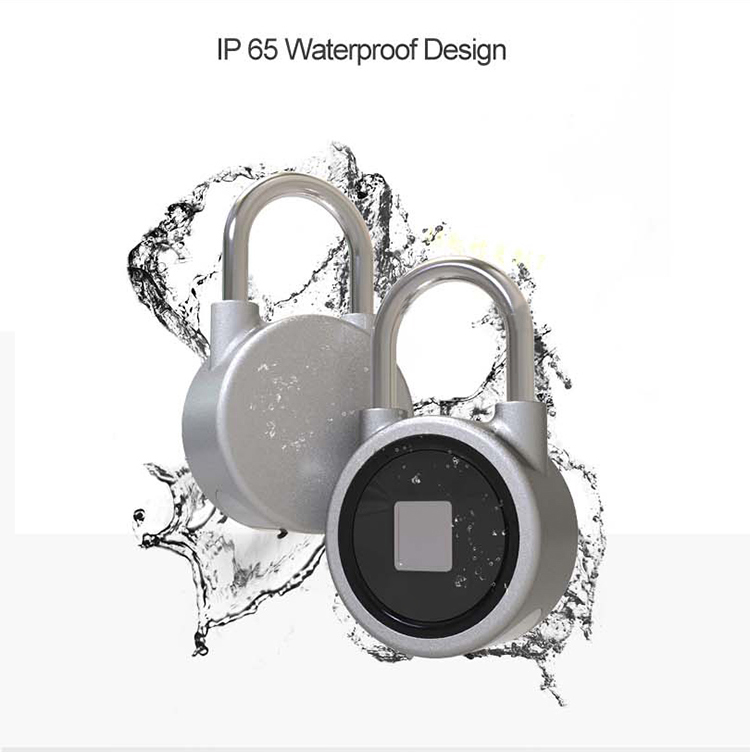

Waterproof
|
IP65
|
Unlocking Time
|
≈ 5s
|
|
Humidity
|
5%～95%
|
Temperature
|
-25ºC~+80ºC
|
|
Feature
|
a. Share key remotely
b.Wake-up mode to unlock c. Scan QR to unlock d.Keep 1000 unlock records, e. Unlock by fingerprint
|
Testing
|
1. Work normally after 6 sides fall and50
~100 times ;
2. Pass vibration test (x-axis 30mins, y-
axis 30mins)
3. Shackle Tensile: vertical tension
≥52kg, lateral tension ≥350kg
|
|

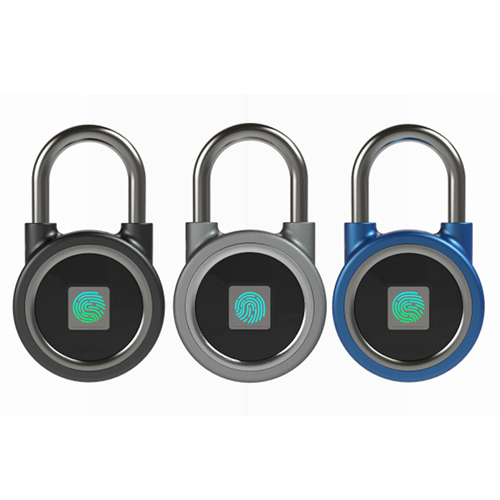

Color
|
Gray (other colordepends onQTY)
|
||
|
Size/ Weight
|
1. Body: 86*50*27mm Shackle: 6mm
2. Weight: around 120g
|
||
|

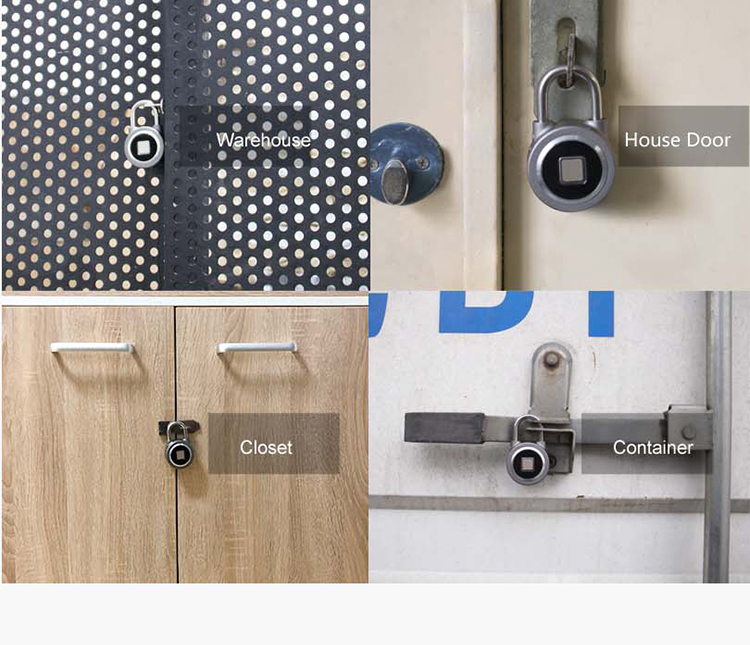

Application
|
Closet, door, bags,luggage,suitcase, etc.
|
||
| Standard Carton Packing Info | |||
| Model | Quantity | Weight | Dimension(cm) |
| P5 | 50pcs | 9.3KG | 46×26×16.5(cm) |
| 1set Packing Info | |||
| P5 | 1set | 0.1KG | 12.5×9×3(cm) |
