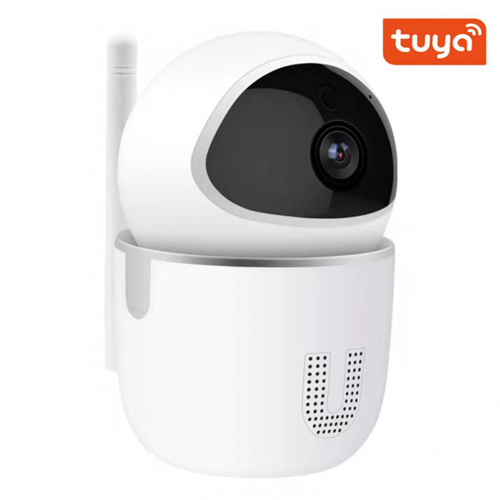

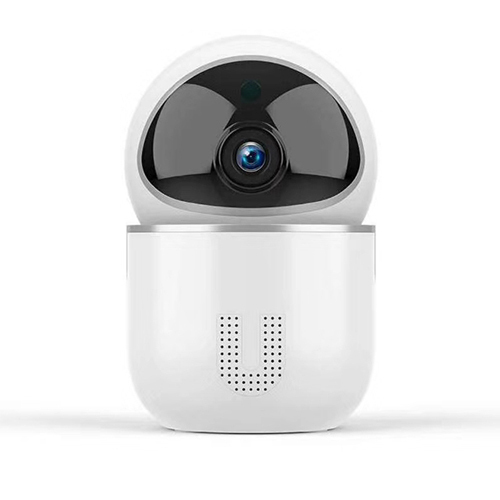

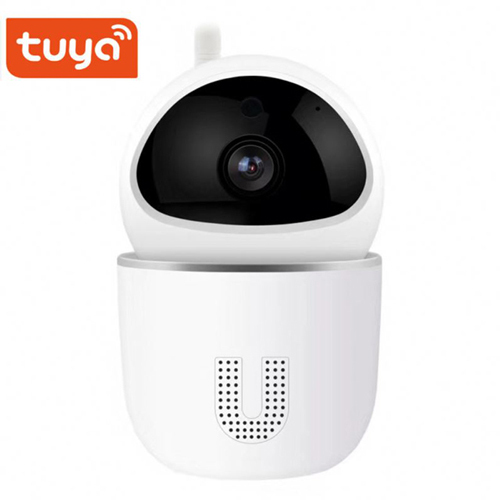

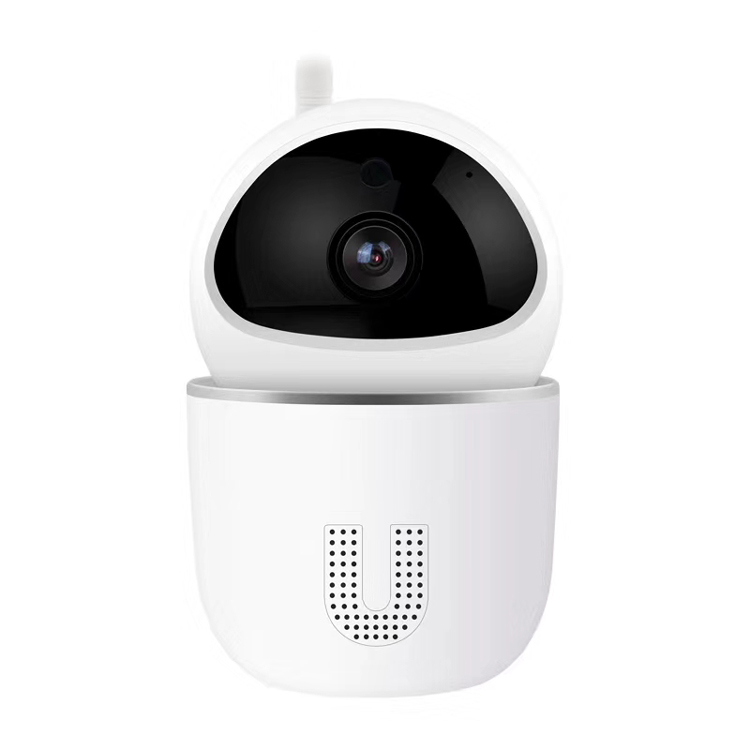

PTZ-26B WIFI Smart Home security wireless ptz ip camera

Description Packing List
Image sensor 1/4" CMOS
Minimum Illumination 0.5Lux (color mode), 0.1Lux (B&W mode)
Lens 3.6mm
Viewing Angle Horizontal Angle75°;  Diagonal Angle 105º
IR-CUT Φ5 6pcs LED lights, Wavelength 850nm ,IR angle 90 °
Distance IR distance 8m
video format H.264
Resulotion 1920*1080@ 20FPS
Video compression 32Kbps-6Mbps, can self-defined, default is 4Mbps
Audio compression G.711
Speaker 1W, 8Ω
Microphone -52dB
Pan & Tilt Horizontal:355°,Vertical:120°
Protocal TCP/IP,UDP,DHCP,P2P and so on
Wireless IEEE 802.11B/G/N
Wireless LAN Frequency 2.4~2.4835GHz
Antenna 2.4GHz 2dBi antenna
Micro SD size 2G/4G/8G/16G/32G/64G/
Format AVI
Input/output none
Alarm notification Push notification for iPhone/Android APP
Upload snapshot and alarm records to TF card (when insert Micro TF card)
Power DC5V 1A
Frequency 50Hz / 60Hz
Operating condition Temperature:-0~50°C,humidity:10%~90%
Material Plastic (ABS)
Box Color box and cartoon,20pcs/carton
Dimension Product size:70*85*110mm      (L*W*H)
box size:
Cartoon size:
Weight Net weight:0.25kg  ,Gross weight(including box):0.45kg
Cartoon Weight:9kg (only for reference)
Accessories Power adapter, manual, screws, bracket, antenna
Os Supported Android,iOS
Certificate ISO FCC CE
Standard Carton Packing Info
Model Quantity Weight Dimension(cm)
PTZ-26B 50pcs 22KG 72×39.5×58.5(cm)
1set  Packing Info
PTZ-26B 1set 0.42KG 13.8×11.25×18.9(cm)
